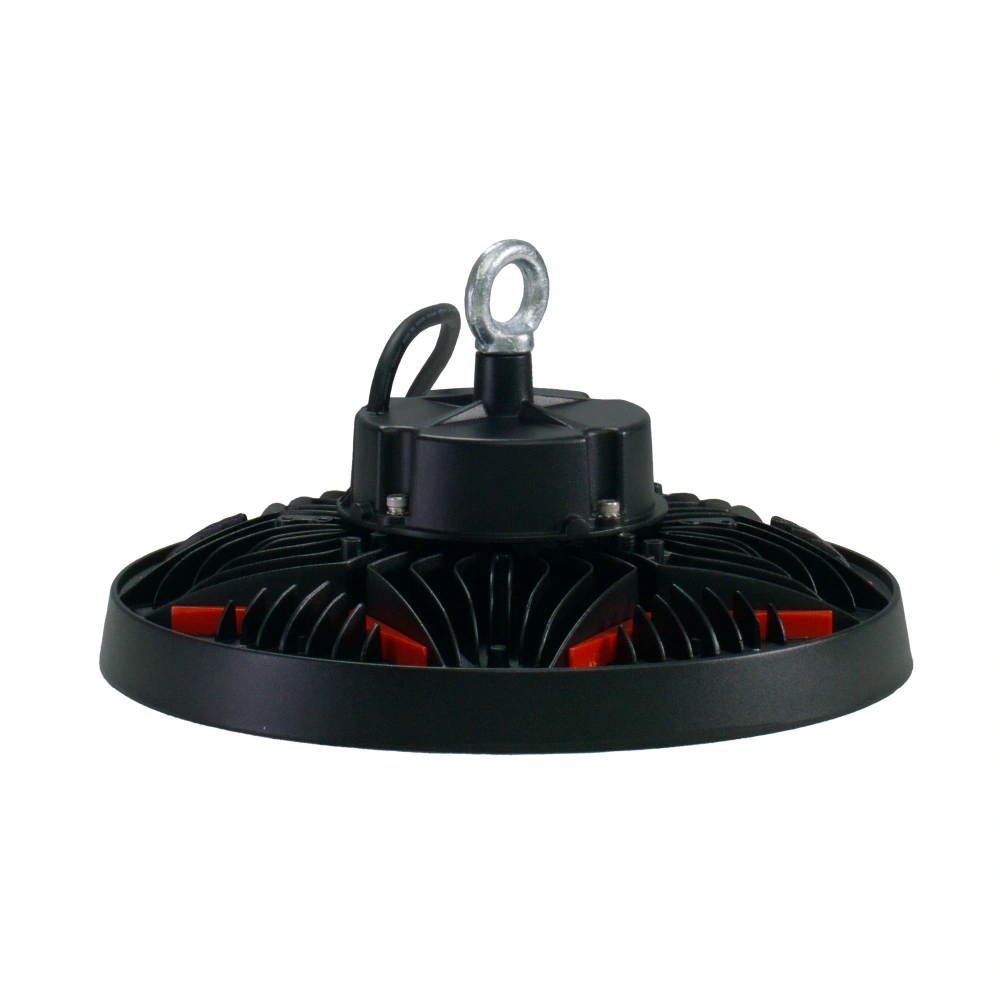

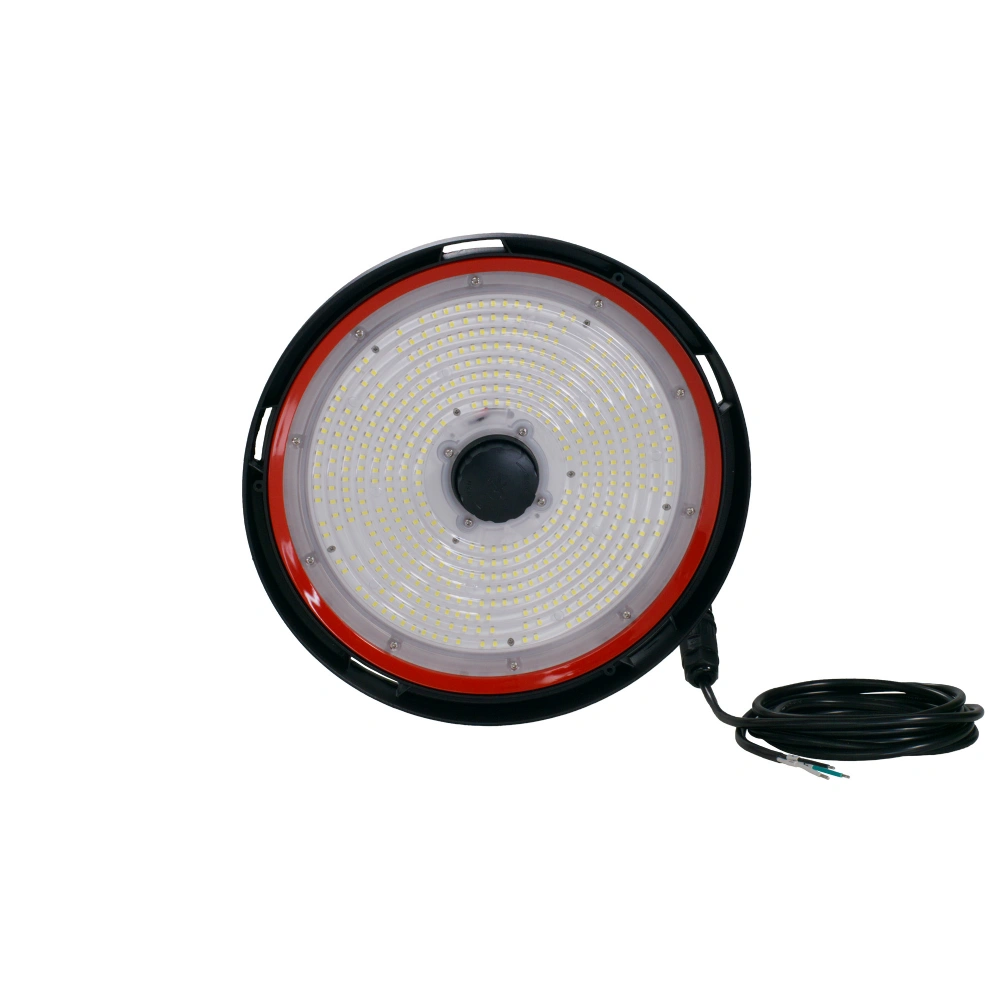

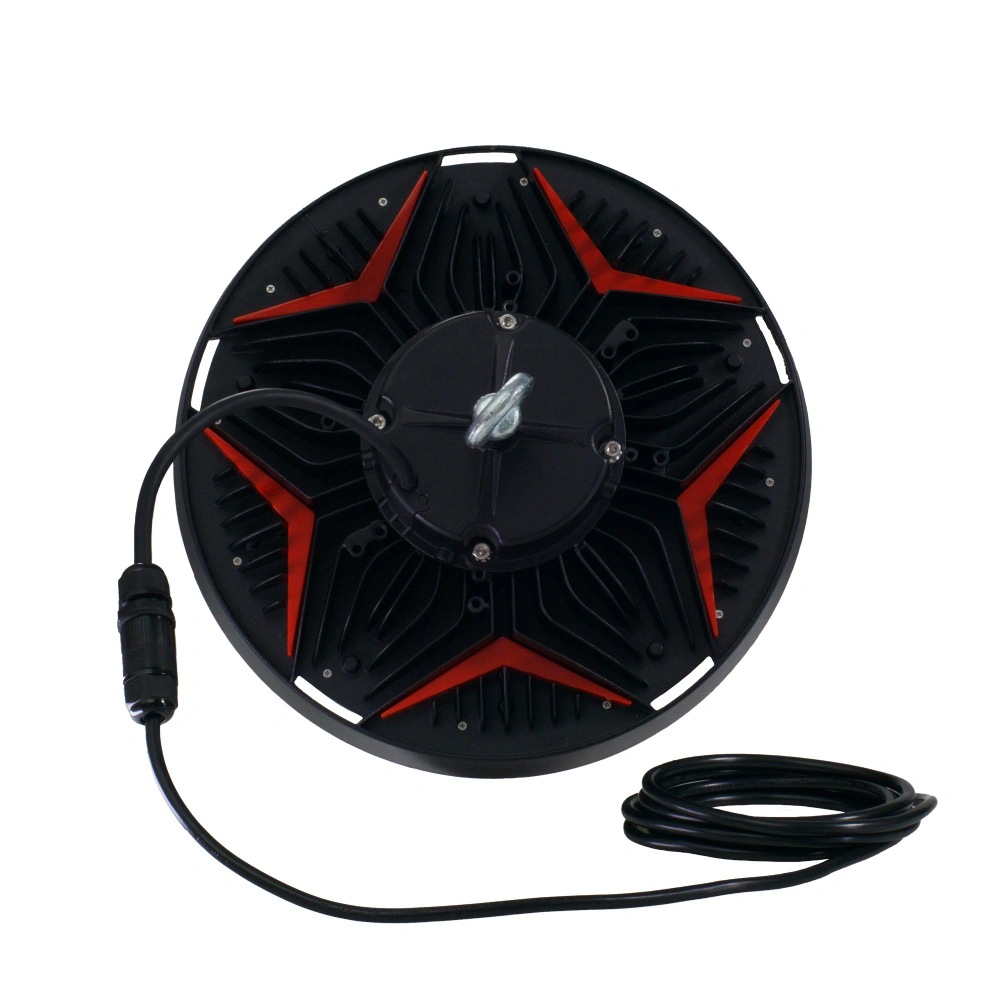

Next-Generation Indoor Sports & Industrial High Bay System

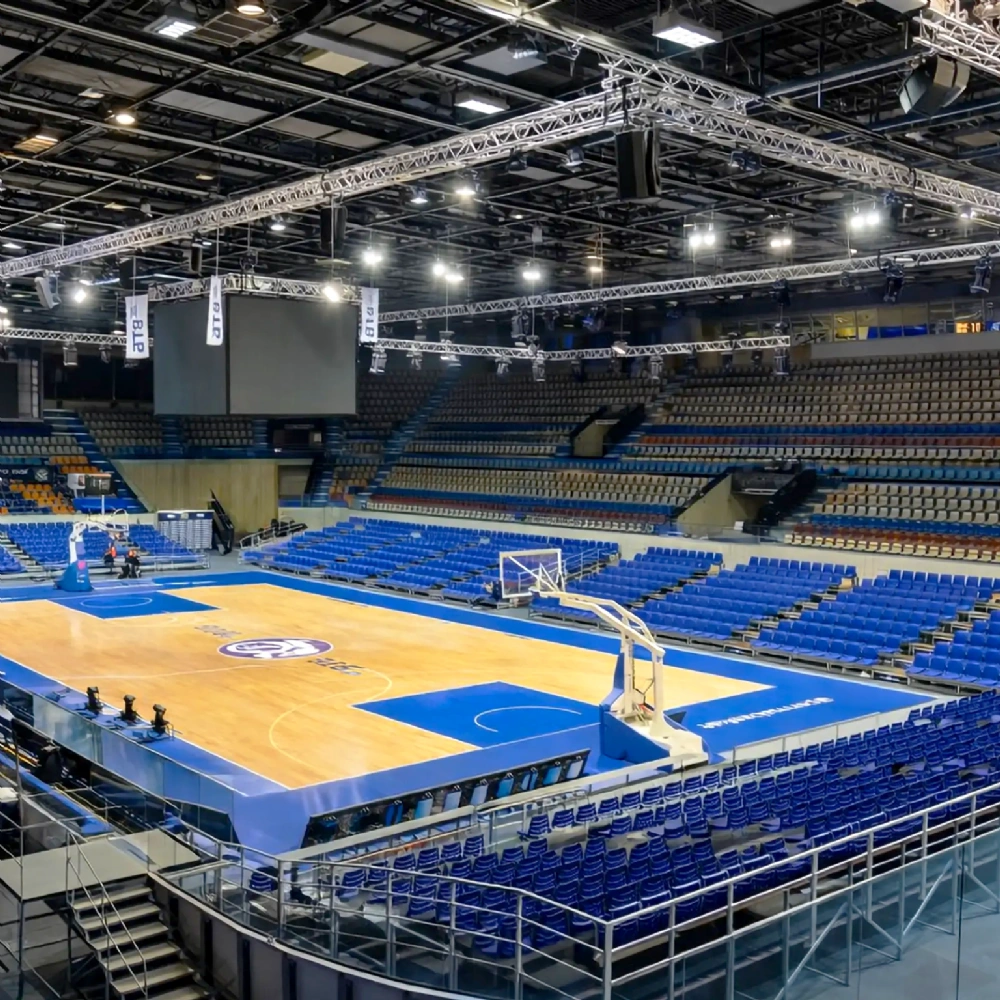

CoreBay is Duvon's indoor high bay system with 60°, 90° and 120° beam options, for gymnasiums and indoor sports spaces where ceiling height varies across the room. Beam selection follows the ceiling height and the court layout rather than a single default.
Performance engineering ensures our fixtures withstand harsh environments while delivering consistent light output.
| Feature | Specification |
|---|---|
| Wattages | 100W / 150W / 200W |
| Lumen Output | 14,000 lm – 30,000 lm |
| CCT | 3000K / 4000K / 5000K (Std.) |
| CRI | 70 (Std.) / 80 / 90 |
| Voltage | 100–277V / 277–480V |
| Beam Optics | 60° / 90° / 120° (Standard 120°) |
| IP Rating | IP20 Standard (IP65 optional) |
| Operating Temp | -4°F to 113°F (-20°C to 45°C) |
| Warranty | 5 Years |
