Duvon™ extracted Class II uniformity from a constrained four-pole layout using narrower-throw ProCourt optics and supplementary vertical-illuminance modelling.

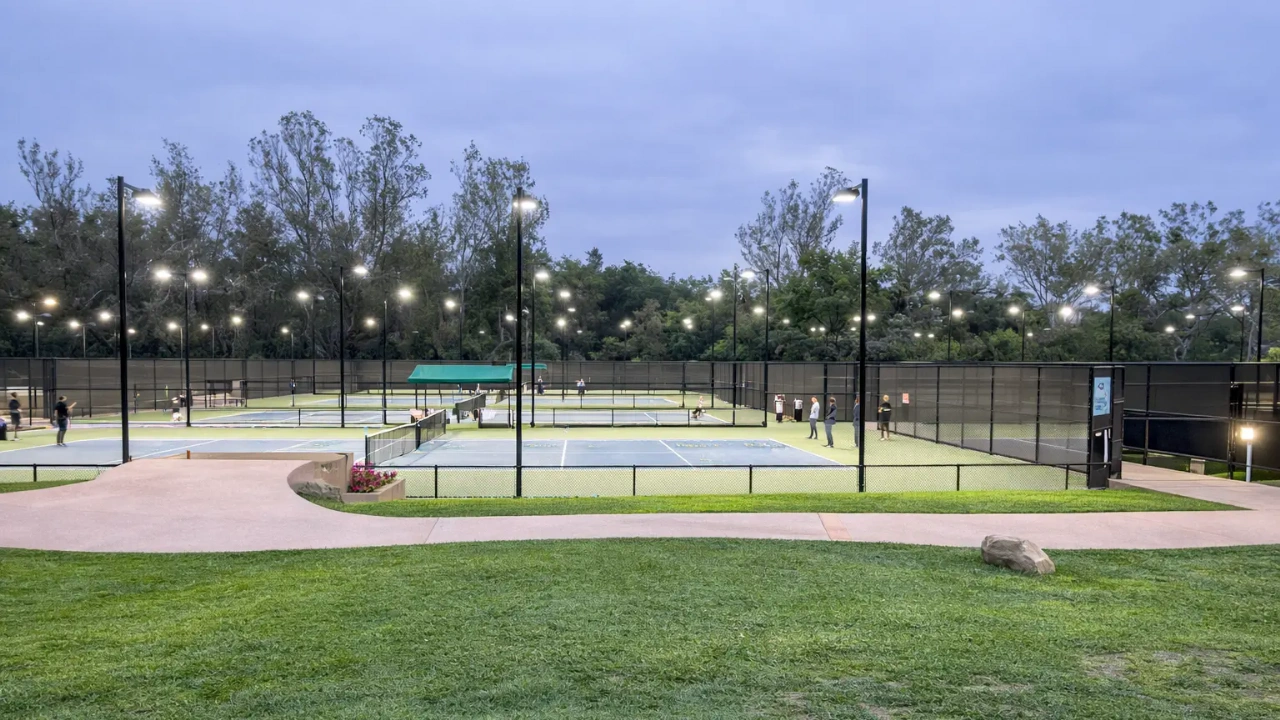

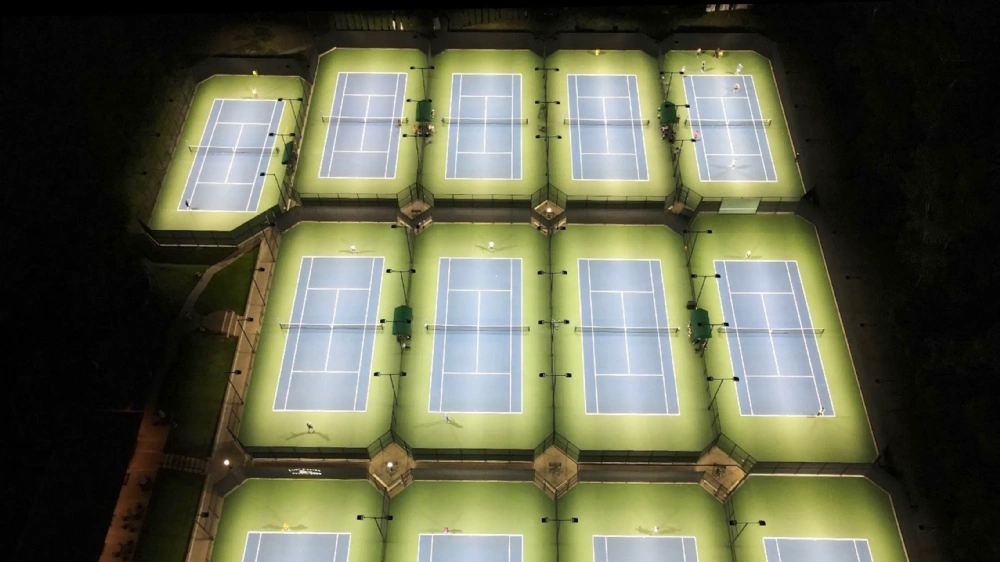

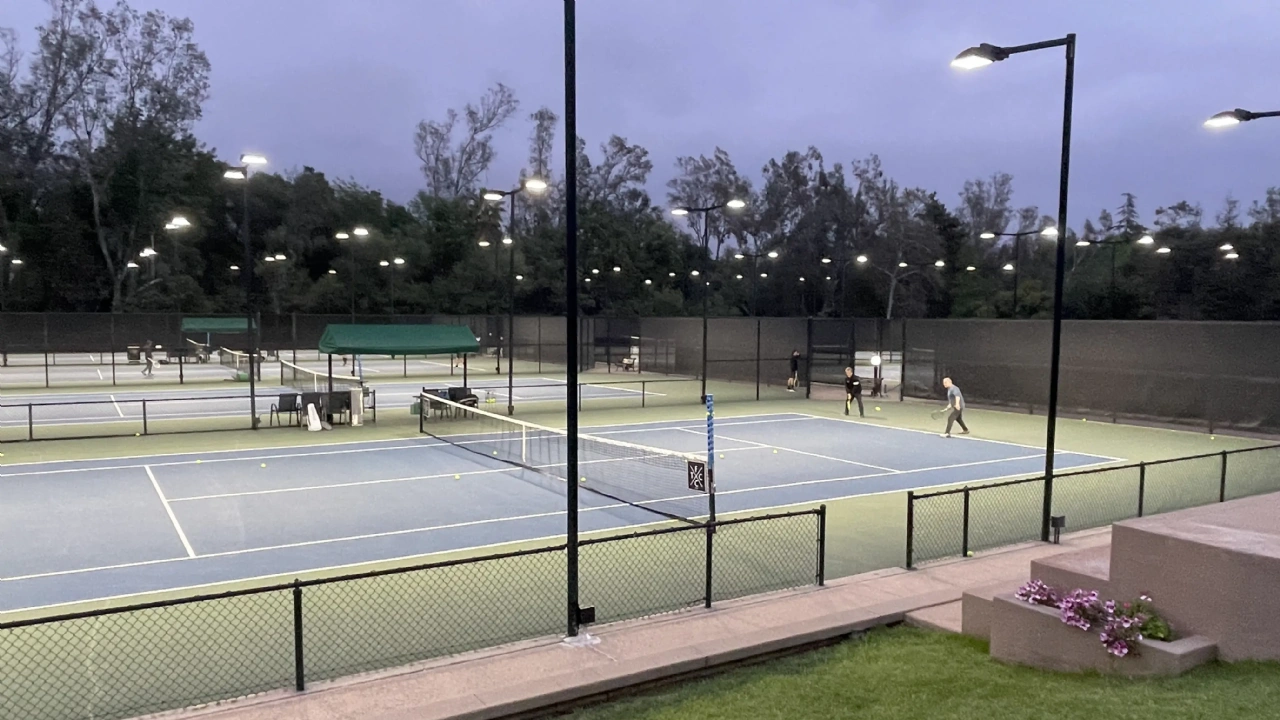

Filet Tennis Courts run on a compact site where pole spacing was constrained by an adjacent walkway and a service driveway. Conventional six-pole arrangements would not have fit, so the design had to extract competition-grade uniformity from a four-pole layout.

We specified ProCourt 400W heads with a tighter throw angle and reinforced the simulation with mid-court vertical illuminance modelling to confirm that lateral coverage met USTA Class II at every line of play. The finish was a low-glare matte black to reduce visual prominence within the surrounding building elevations.

Results: 50-fc maintained average, 1.3:1 uniformity, and a glare rating that disappears outside the playing envelope.

Highlights

Lighting Class:  USTA Class II

Average Illuminance:  50 fc maintained horizontal

Uniformity:  1.3:1

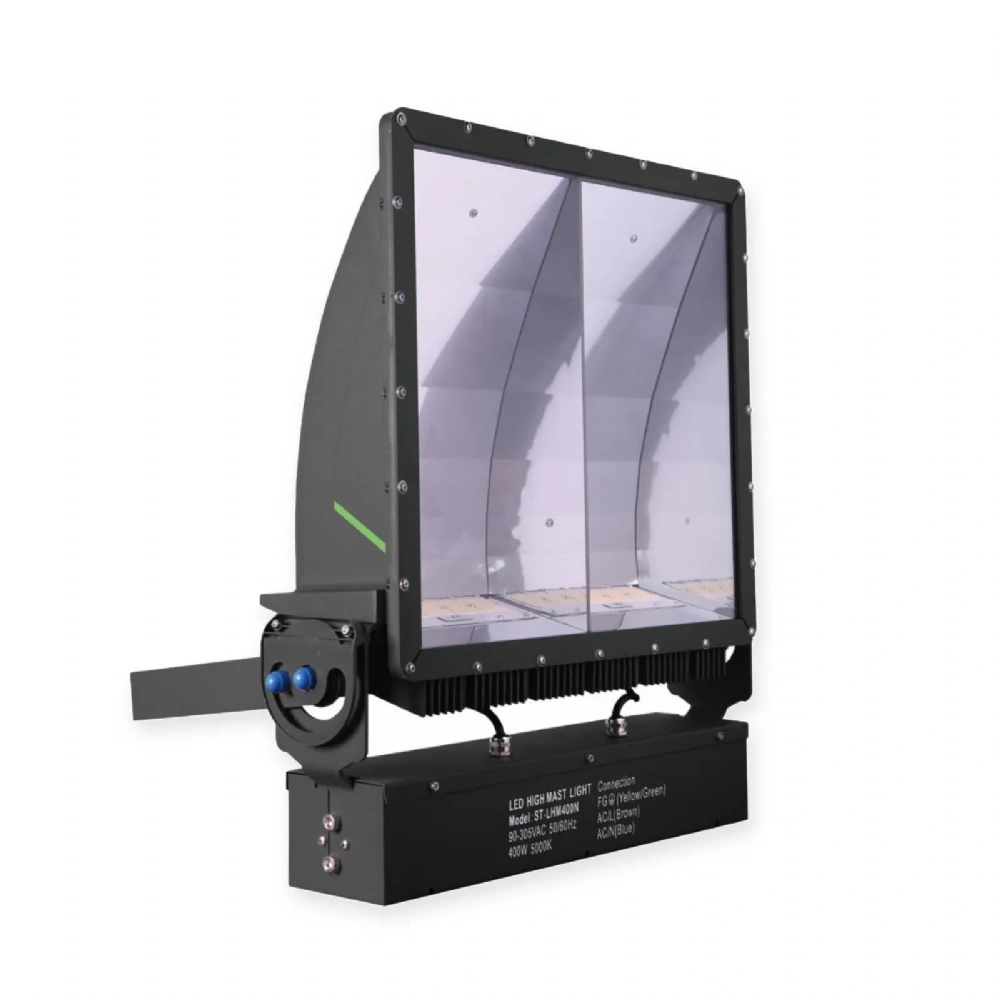

Fixtures:  ProCourt 400W LED Court Lights (5000K, narrow throw)

Energy Savings:  Up to 60% vs HID
