Duvon™ delivered a multi-sport court + small-sided field lighting system with three preset DALI scenes — football, tennis, and pickleball, all from one touch panel.

The Wexx site combines a small-sided football pitch with surrounding tennis and pickleball courts on a single mast network. The brief asked for a single control system that could re-tune lighting per sport from a wall-mounted touch panel.

Duvon supplied ProCourt heads on the courts and Freedom 500W heads on the central pitch, all driven from a unified DALI bus. Three preset scenes — "5-a-side," "tennis," and "pickleball" — re-aim the relevant zones and dim the rest to a low-spill ambient level.

Managers can flip between sports without intervention from a lighting tech, and the system runs at uniform competition-grade output regardless of which sport is active.

Highlights

Lighting Class:  USTA Class II / IFP / SLL LG4

Average Illuminance:  50 fc tennis / 45 fc pickleball / 28 fc pitch horizontal

Uniformity:  1.3:1 courts / 1.5:1 pitch

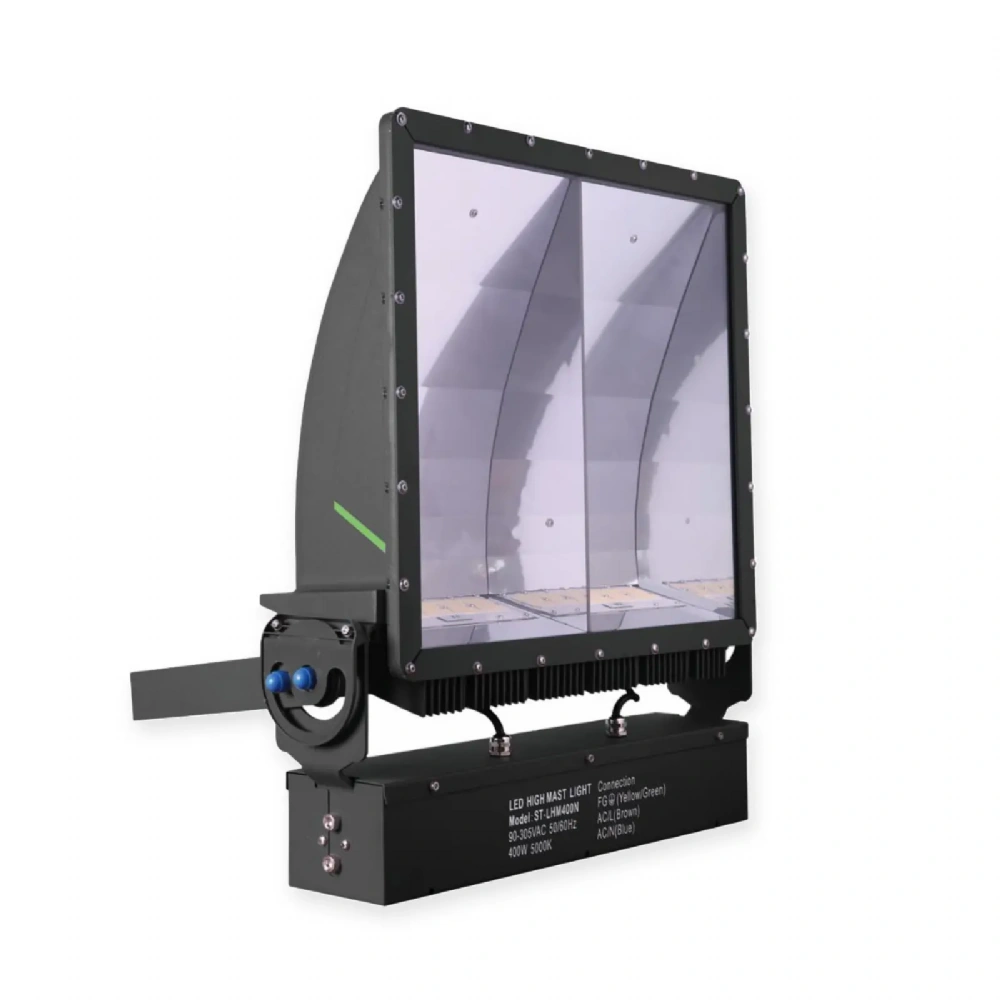

Fixtures:  ProCourt 400W LED Court Lights (5000K, courts) + Liberty Field Series 1200W (5700K, pitch)

Energy Savings:  Up to 60% vs HID
