Duvon™ unified a soccer pitch and adjacent tennis battery under a single bus, with two preset scenes that re-tune the active sport while the off-sport zone drops to ambient.

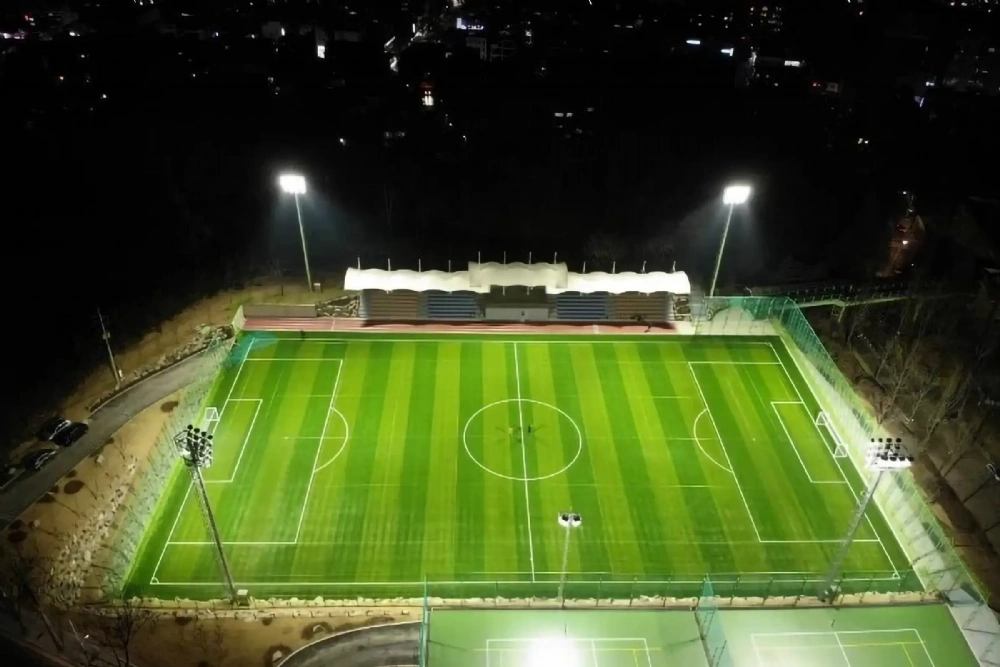

This regional sports complex shares pole infrastructure between a small-sided soccer pitch and a tennis battery, with both sports running back-to-back through the evening. The brief required a single specification that could re-tune output and aiming per sport without manual fixture intervention.

Duvon supplied Liberty Field Series 1200W heads over the pitch and Freedom 500W heads on the tennis side, all driven from a unified DMX/DALI hybrid bus. Two presets — "soccer" (30 fc pitch, court zone dimmed to ambient) and "tennis" (50 fc courts, pitch dimmed to ambient) — are selectable from the venue's existing scoreboard control room.

The finished system holds tournament-grade visibility on each surface and reduced facility-wide operating energy by 56% versus the prior installation.

Highlights

Lighting Class:  FIFA recreational / USTA Class II

Average Illuminance:  50 fc tennis / 30 fc pitch horizontal

Uniformity:  1.3:1 courts / 1.5:1 pitch

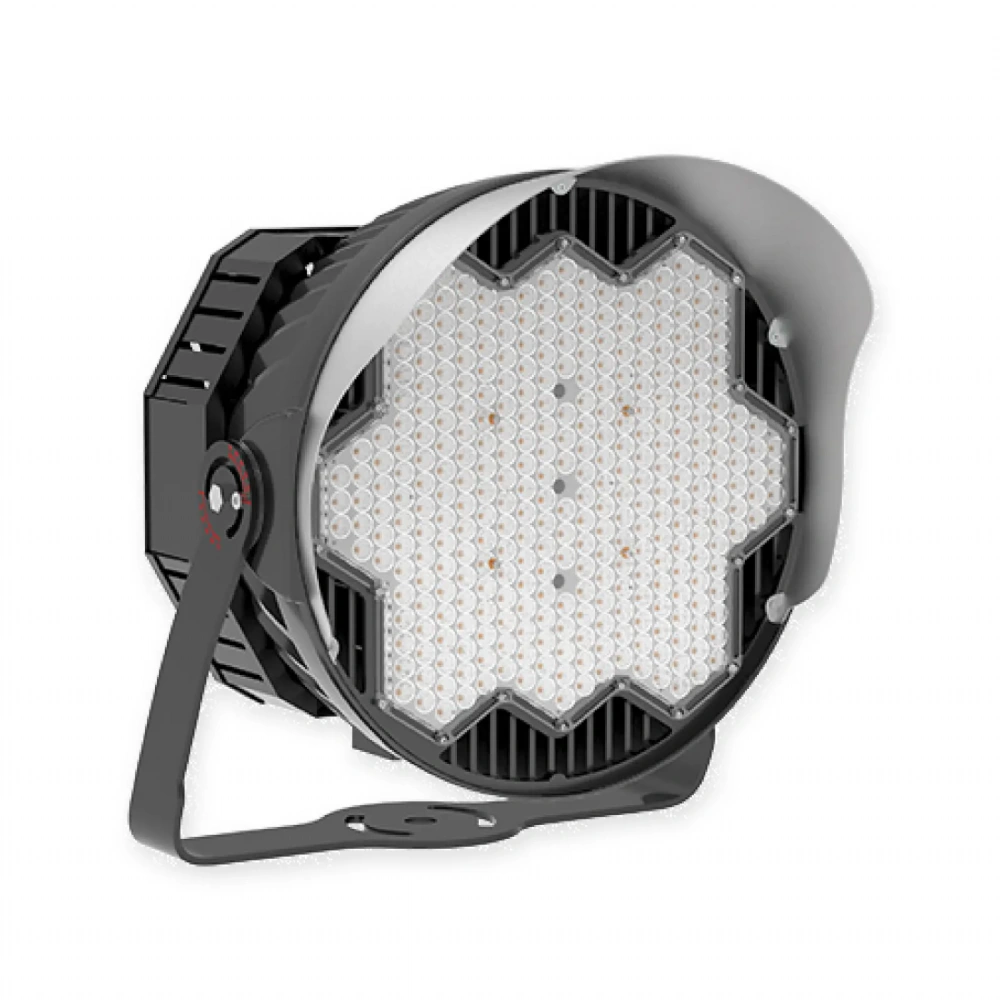

Fixtures:  Liberty Field Series 1200W (5700K, pitch) + Freedom 500W (5000K, courts)

Energy Savings:  Up to 56% vs HID
