Duvon™ upgraded Wilson Stadium with Liberty Field Series 1200W broadcast-grade LED — three preset scenes from the booth console, sub-second restart, and broadcast-ready vertical illuminance.

Wilson Stadium hosts a calendar of school, semi-pro, and community events where the lighting needs to step up from recreational to broadcast-ready on demand. The prior 1500W metal-halide installation could not deliver flicker-free output at modern frame rates and warmed up far too slowly for live event flow.

Duvon's specification used Liberty Field Series 1200W heads with broadcast-grade drivers, 70 CRI optics, and a TLM flicker index below 0.10 across all dimming levels. The system runs three preset scenes — practice, league, and broadcast — controlled from the existing booth console.

The finished facility delivers 50 fc horizontal / 100 fc vertical at the broadcast preset, restarts in under one second after a grid event, and reduced operating energy by 55% across an entire season's worth of meter readings.

Highlights

Lighting Class:  Class II / NFHS broadcast

Average Illuminance:  100 fc vertical (camera-side) / 50 fc horizontal

Uniformity:  Better than 1.5:1

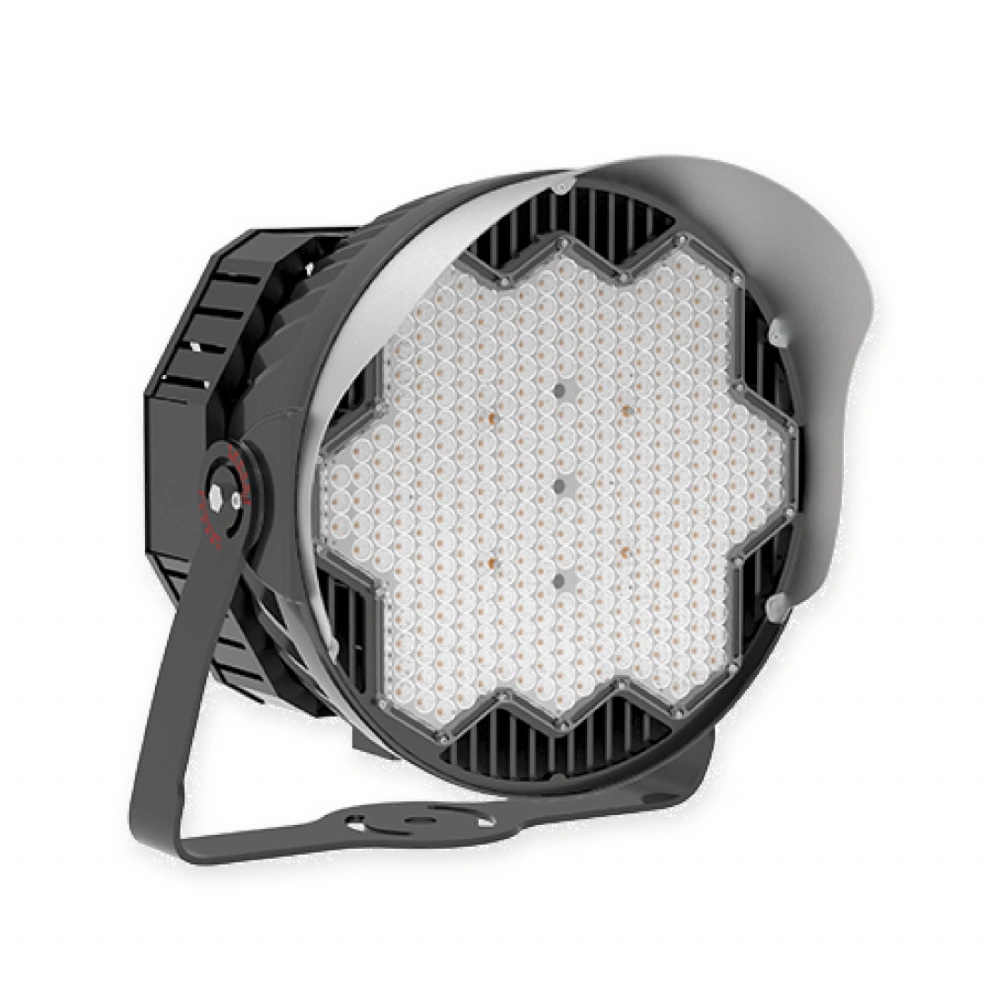

Fixtures:  Liberty Field Series 1200W LED Stadium Lights (5700K, broadcast-grade)

Energy Savings:  Up to 55% vs HID
