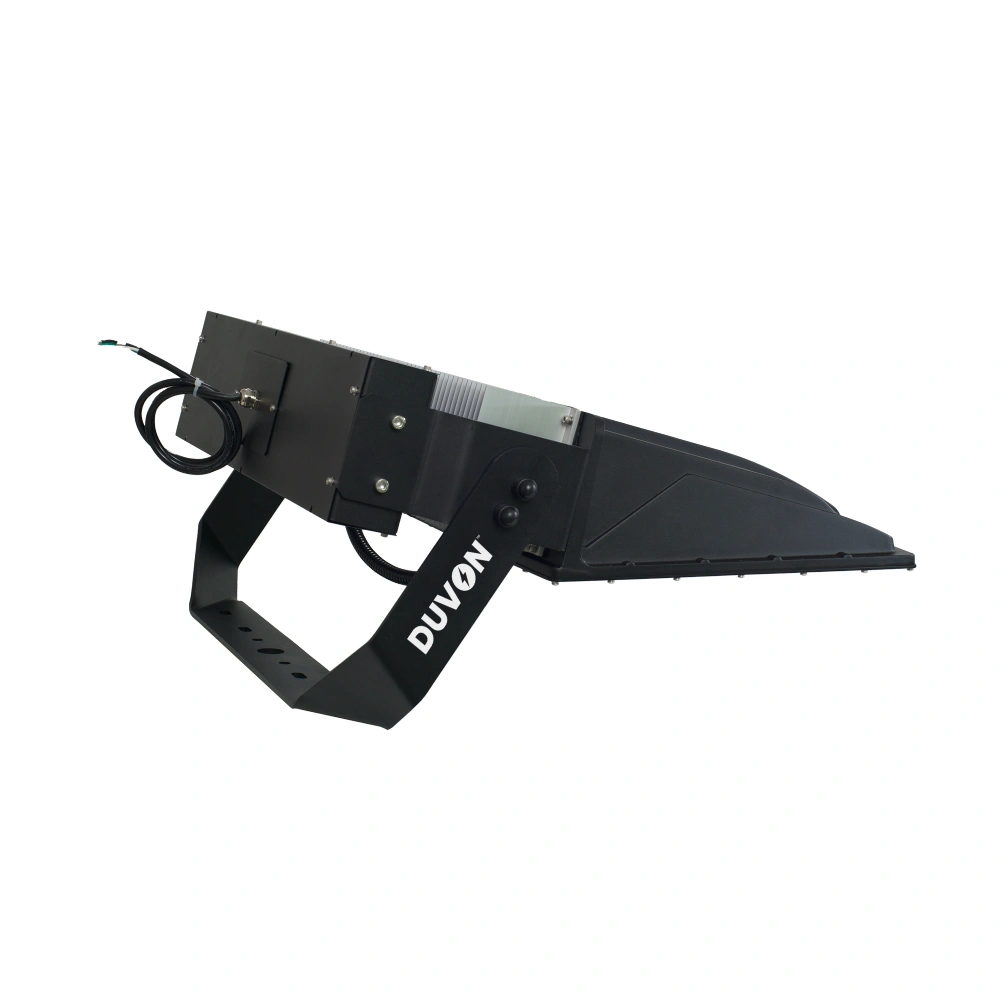

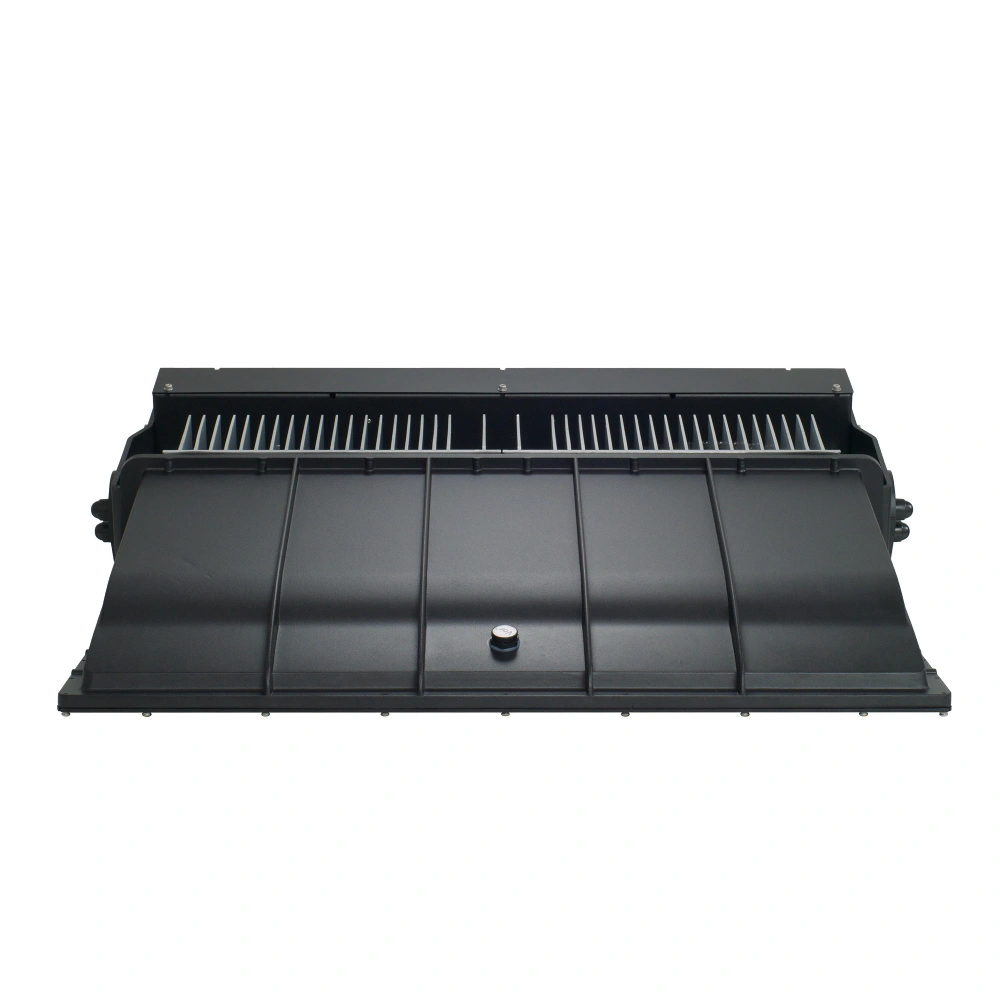

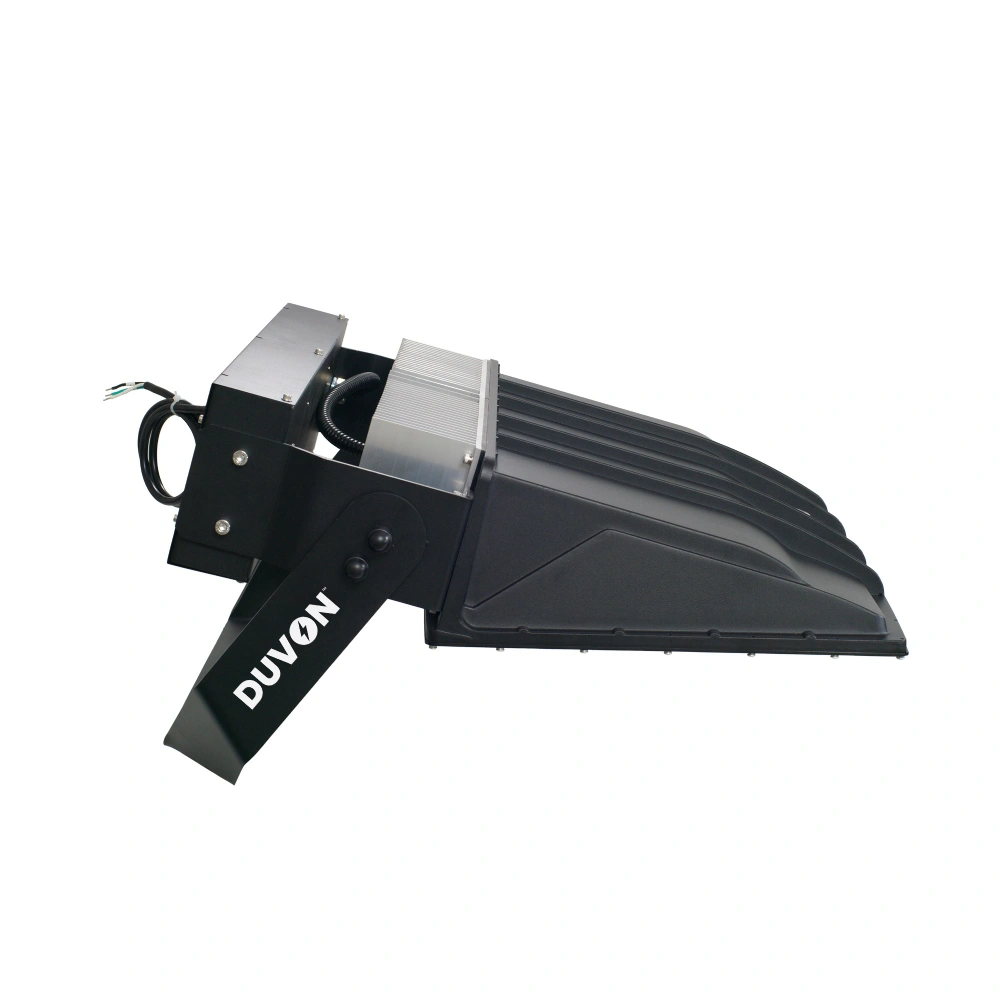

High-Output Competition Sports Lighting System
Freedom is a commercial LED lighting system for competitive court venues. Available configurations include 500W / 600W / 800W, 100–277V / 277–480V and indirect asymmetric court optics. Final fixture quantity, mounting and aiming must be determined through a project-specific photometric design.
Performance engineering ensures our fixtures withstand harsh environments while delivering consistent light output.
| Feature | Specification |
|---|---|
| Wattages | 500W / 600W / 800W |
| Lumen Output | Up to 104,000 lm |
| CCT | 3000K / 4000K / 5000K (Std.) |
| CRI | 70 (Std.) / 80 / 90 |
| Voltage | 100–277V (Std.) / 277–480V |
| Beam Optics | Full Cut-Off / Indirect Asymmetric |
| IP Rating | IP65 (IP67/68 internal components) |
| Lifespan | L70 ≥ 100,000 hrs |
| Warranty | 10 Years |
