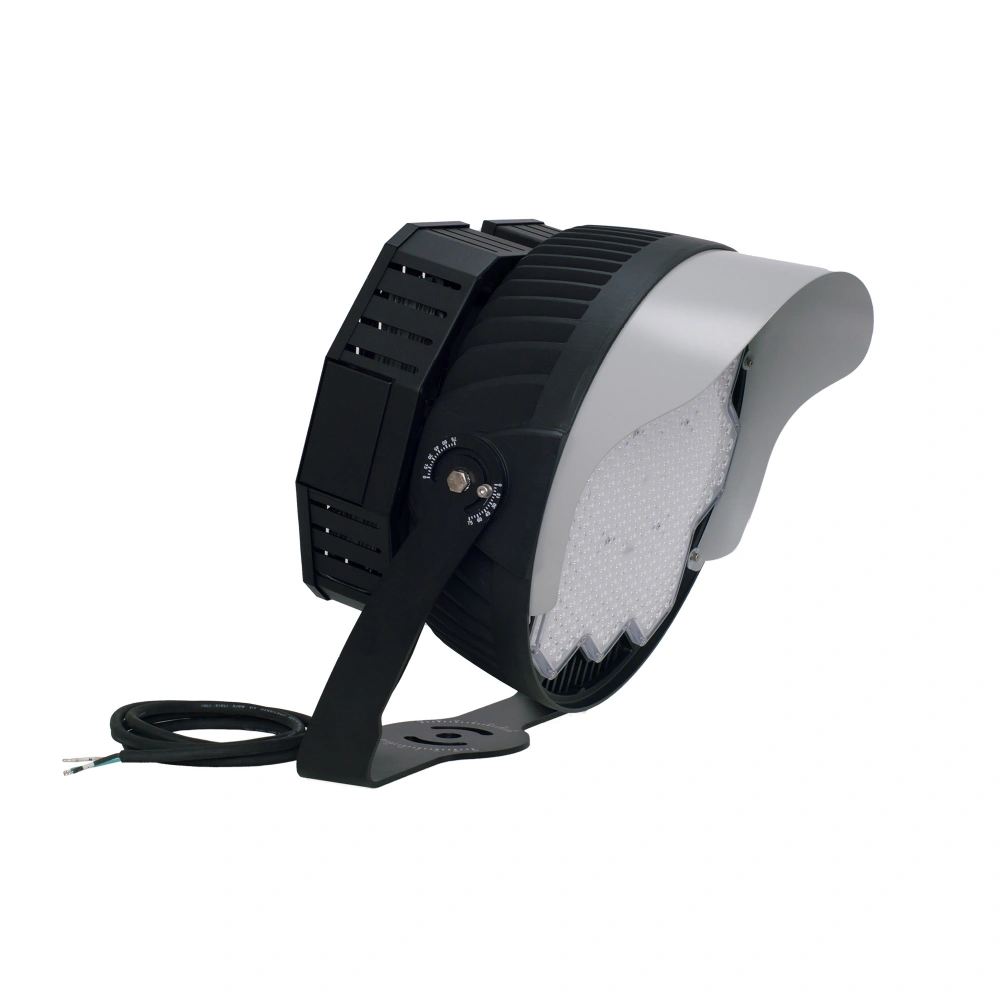

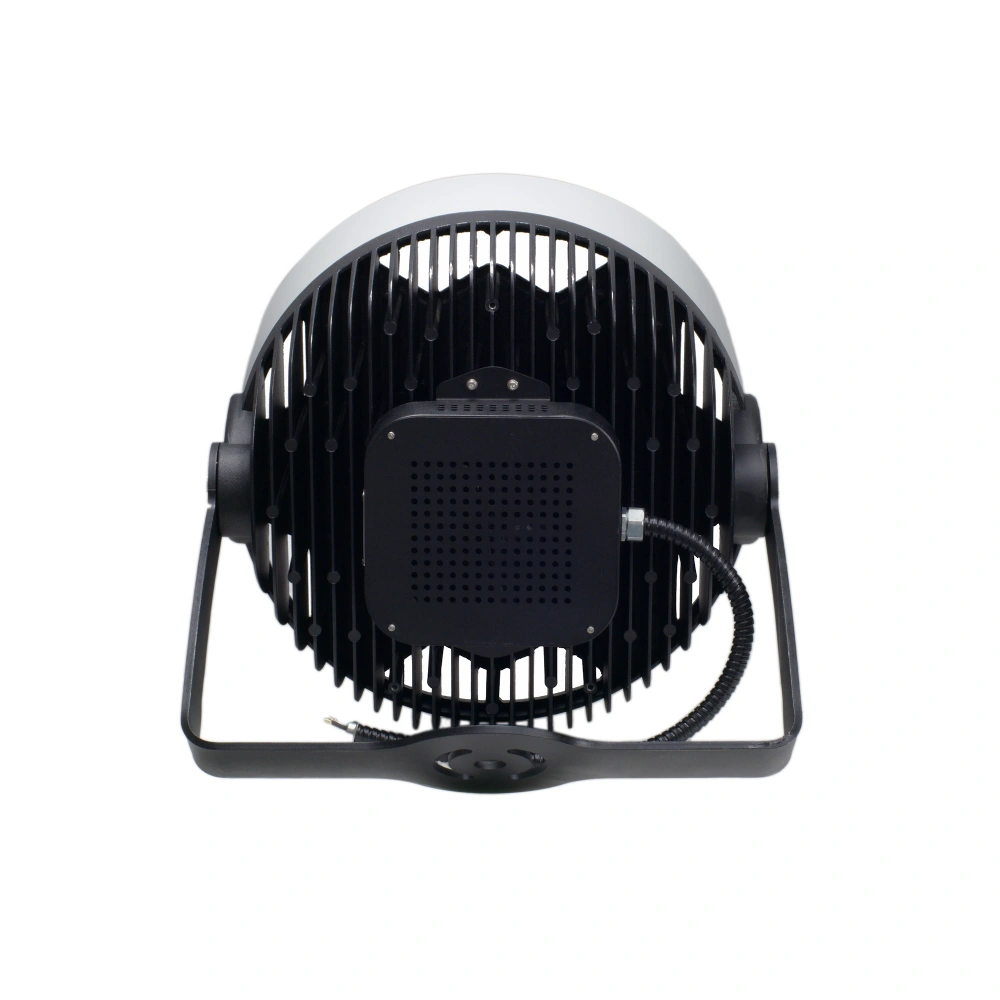

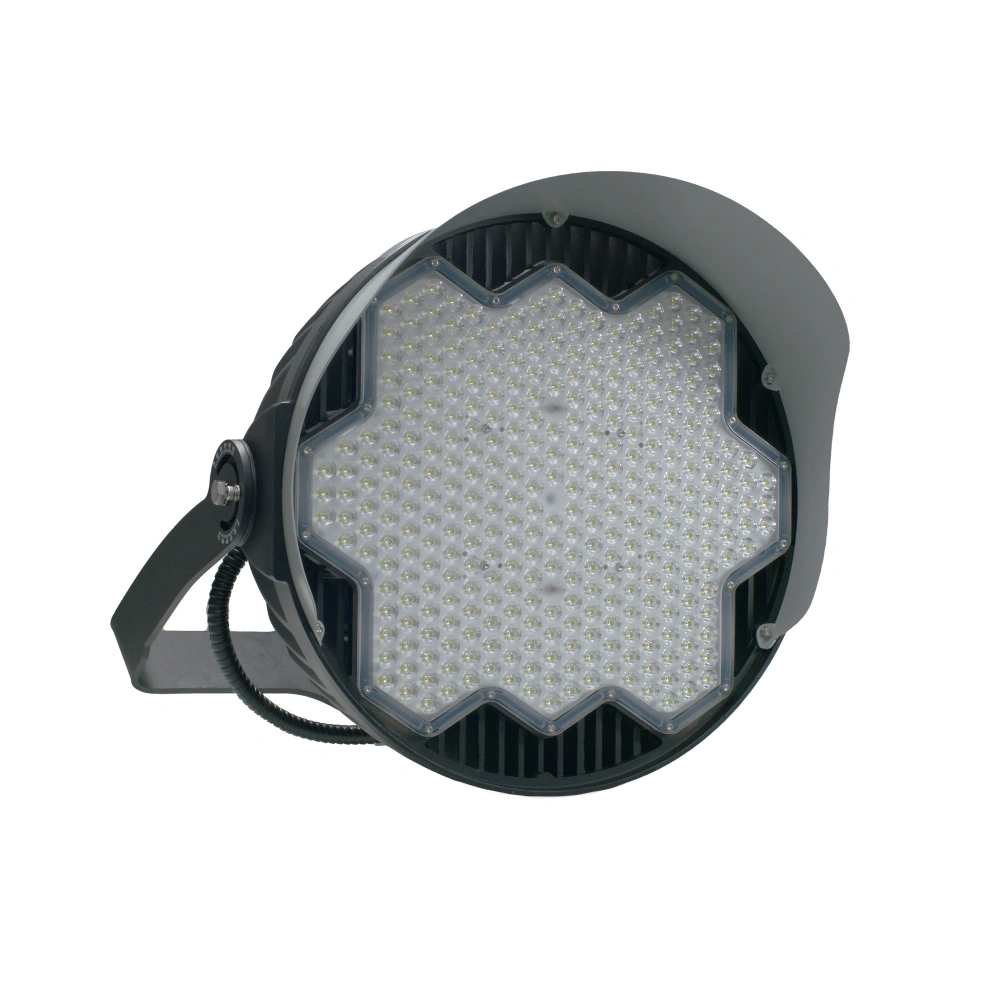

High-Performance Multi-Sport Field Lighting System
Liberty is a commercial LED lighting system for schools, parks, and municipal athletic facilities. Available configurations include 800W / 1000W / 1200W, 100–277V / 277–480V and 15° / 25° / 45° beam angles. Final fixture quantity, mounting and aiming must be determined through a project-specific photometric design.
Performance engineering ensures our fixtures withstand harsh environments while delivering consistent light output.
| Feature | Specification |
|---|---|
| Wattages | 800W / 1000W / 1200W |
| Lumen Output | Up to 144,000 lm |
| CCT | 4000K / 5000K / 5700K (Std.) |
| CRI | 70 (Std.) / 80 / 90 |
| Voltage | 100–277V (Std.) / 277–480V |
| Beam Optics | 15° / 25° / 45° Precision Optics |
| IP Rating | IP65 / IP66 Optional (IP67/68 internal components) |
| Lifespan | L70 ≥ 100,000 hrs |
| Warranty | 10 Years |
